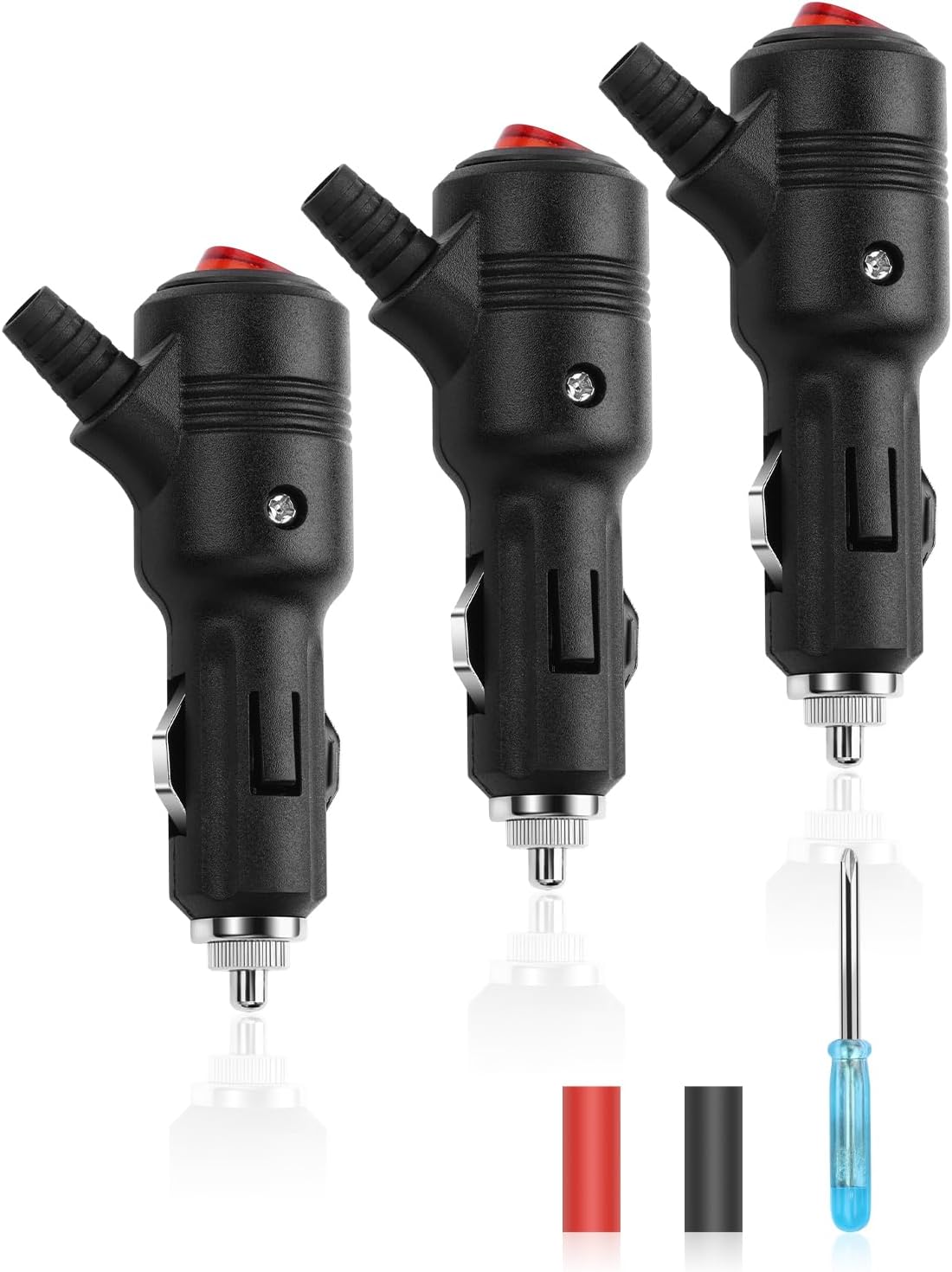

12V Fused Cigarette Lighter Male Repair Replacement Plug with On/Off Switch – Built-in 15A Fuse, LED Indicator, Universal Car Cigarette Lighter Power Adapter for Car Electronics

Description

Price: $9.99 - $10.99
(as of Oct 02, 2025 01:50:51 UTC – Details)

HATMINI 15A Fuse Male Car Cigarette Lighter Socket Plug Connector

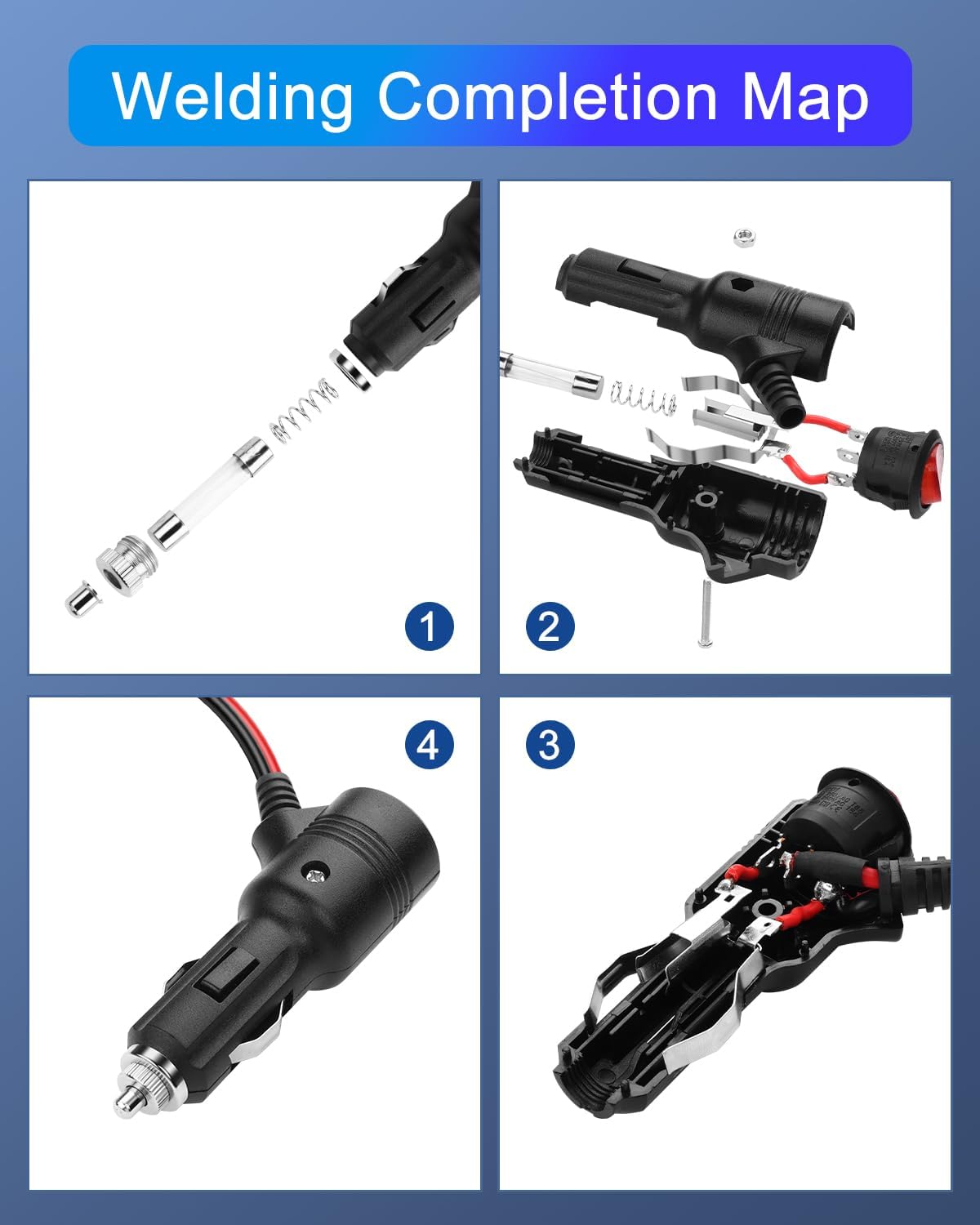

Disassemble and install:

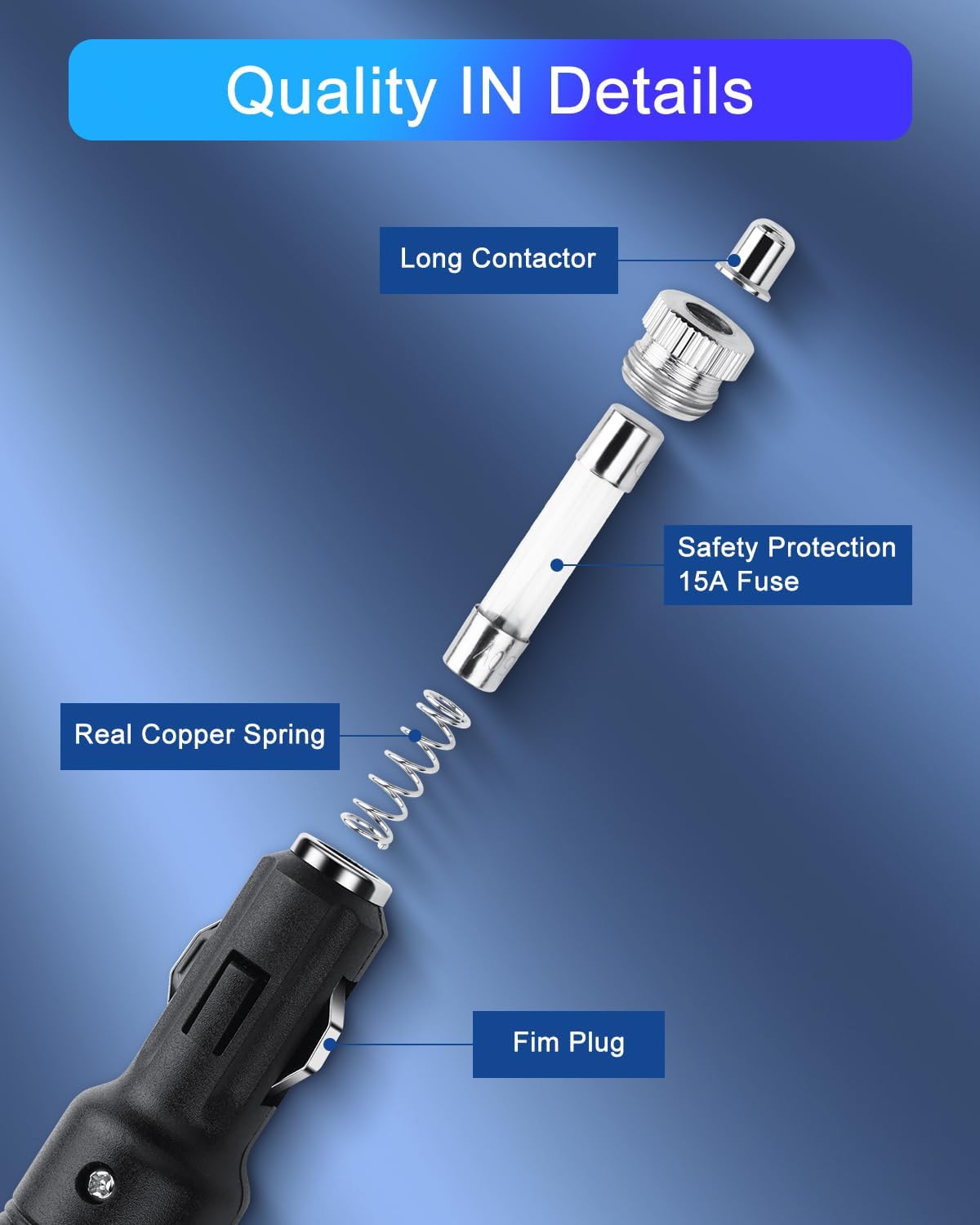

1. Unscrew the top threads and take out the contact terminal, fuse and spring.
2. Use a screwdriver to loosen the side screws.
3. Use a knife to gently pry open the gaps in the housing.
4. Sleeve the heat-shrinkable tubing into the positive and negative cables.

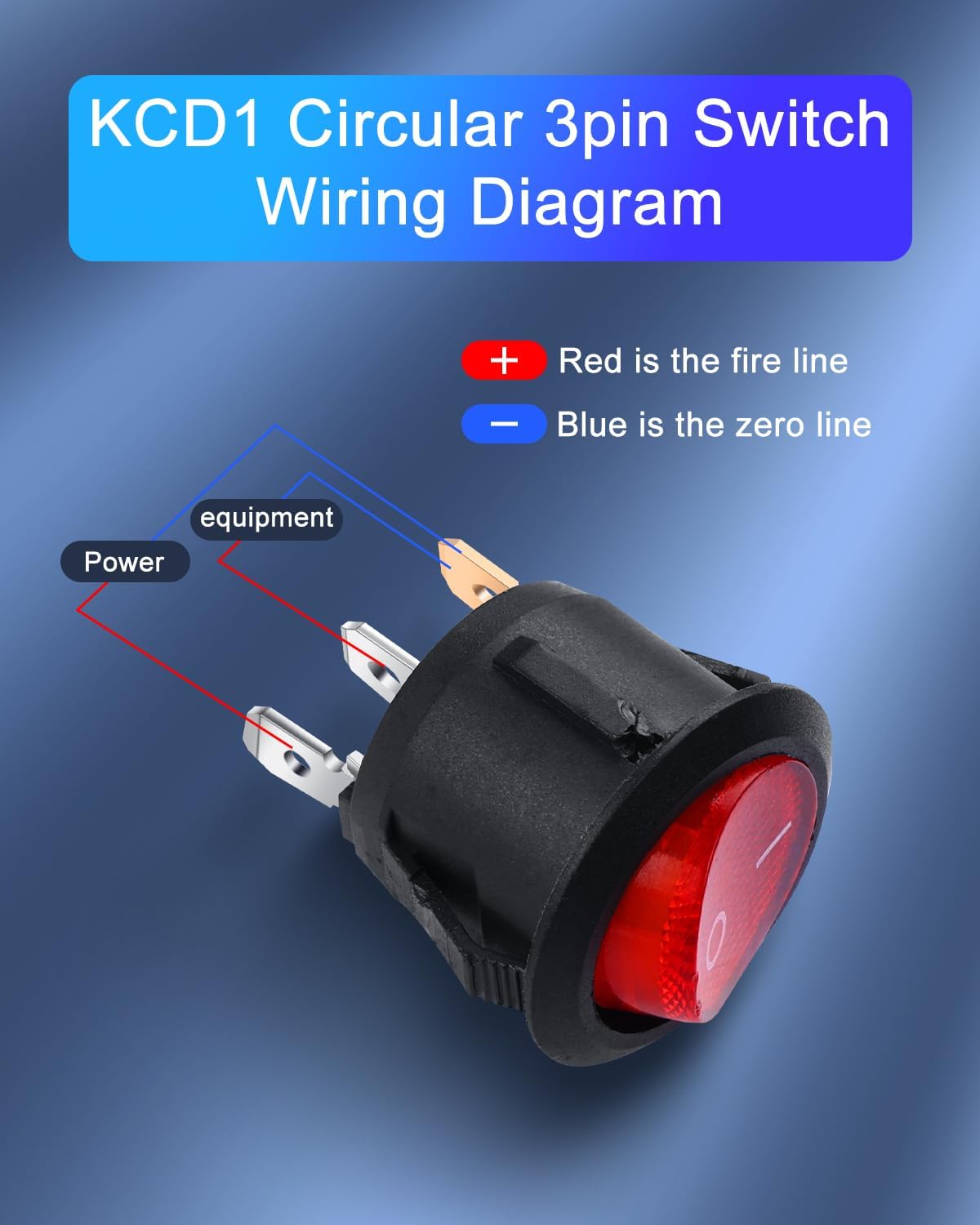

5. Connect the positive pole of the power supply to the silver contacts of the switch (two silver contacts can be randomly connected to one or two at the same time).
6. Connect the negative terminal of the power supply to the golden pin of the switch.
7. Use a heat gun or lighter to weld the positive and negative interfaces with heat-shrinkable tubing to protect against touching the short-circuit
8. And then the original assembly can be
Note: Do not operate with electricity!!!

Specification:
Connector type: Cigarette lighter male

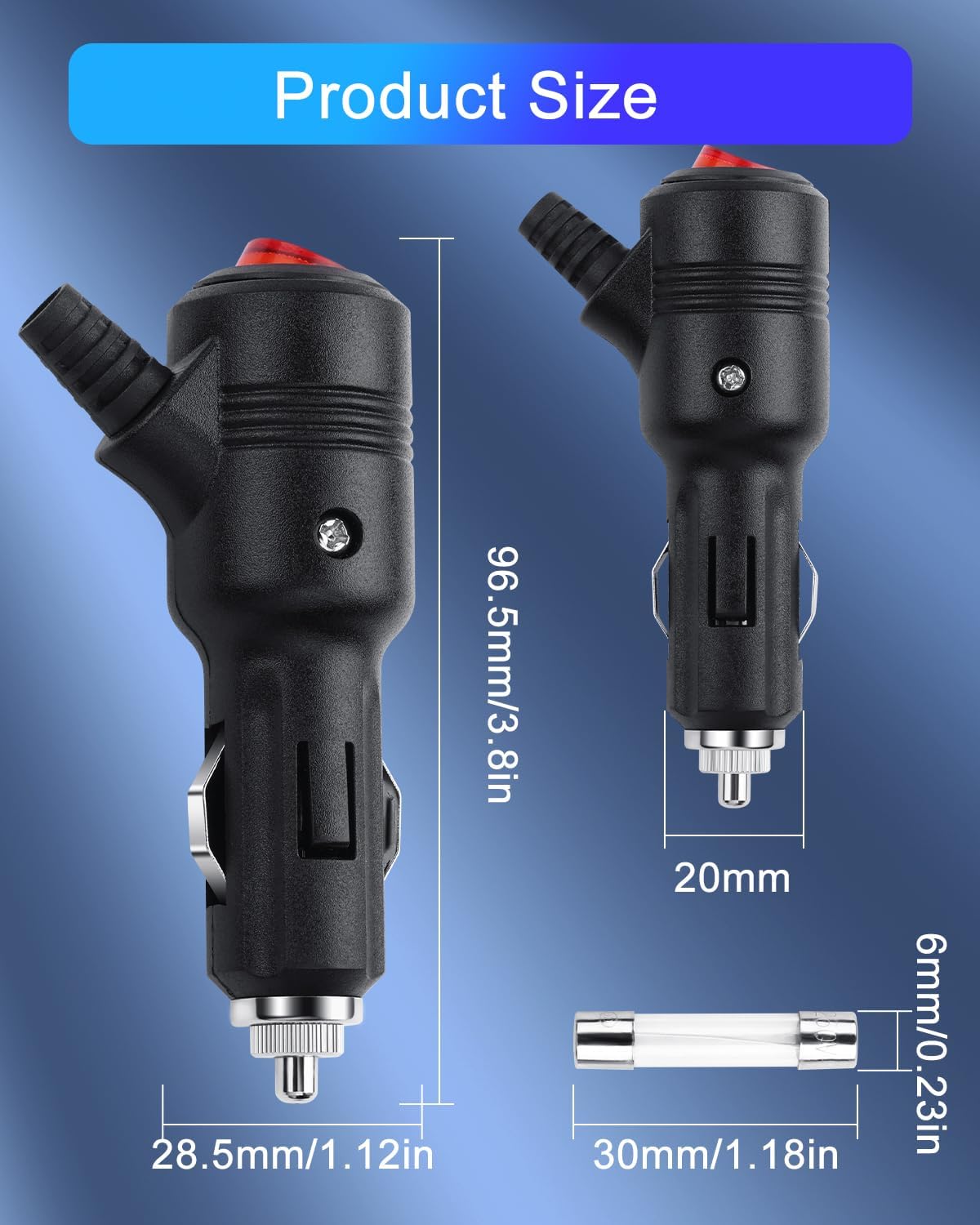

Length: 3.62 inches / 9.2 cm
Weight: 18 grams
Installation: Solder on cable
Fuse: 15A
LED: Red
Reliable power supply solution for on-board appliances
Safety Guarantee.
15A glass tube fuse (can be replaced by yourself) provides overload protection and automatically cuts off the power supply in case of failure.
LED status light monitors real-time equipment energization to ensure the safe operation of the inflatable pump, heated seat cushion and other equipment. Rugged Construction.
PA66 flame-retardant shell and pure copper terminals resist vibration, moisture and temperature change, suitable for trucks, RVs and marine environments.
Technical Parameters.
Voltage: 12V DC
Maximum current: 15A (180W)
Operating temperature: -40°C to +85°C
Size: Standard 21mm male connector
Usage Scenario.
Power supply for inflatable pump, car refrigerator, LED light bar, GPS locator and so on.
Provide emergency power for medical equipment when traveling unexpected situation.
Installation Tips.
Total load should not exceed 180W.
【Disassembly】Unscrew the top threads, take out the contact terminals, fuses and springs, loosen the side screws with a screwdriver, and gently pry open the casing along the gap with a knife.
【Installation】 Heat shrink tubing line into the positive and negative cables, the power supply positive access to the silver contacts of the switch (two silver contacts can be randomly accessed one or two at the same time), the power supply negative access to the gold contacts of the switch, the use of a heat gun or lighter will be welded to the positive and negative interfaces with a heat shrink tubing to protect against touching the short-circuit, and then the original circuit can be installed, Note: Do not operate with electricity!!!!
【Safety-First Design】Built-in 15A replaceable fuse prevents overcurrent and short circuits, automatically cutting off power during faults. Supports 12V systems (max 180W) for safe use with car appliances.

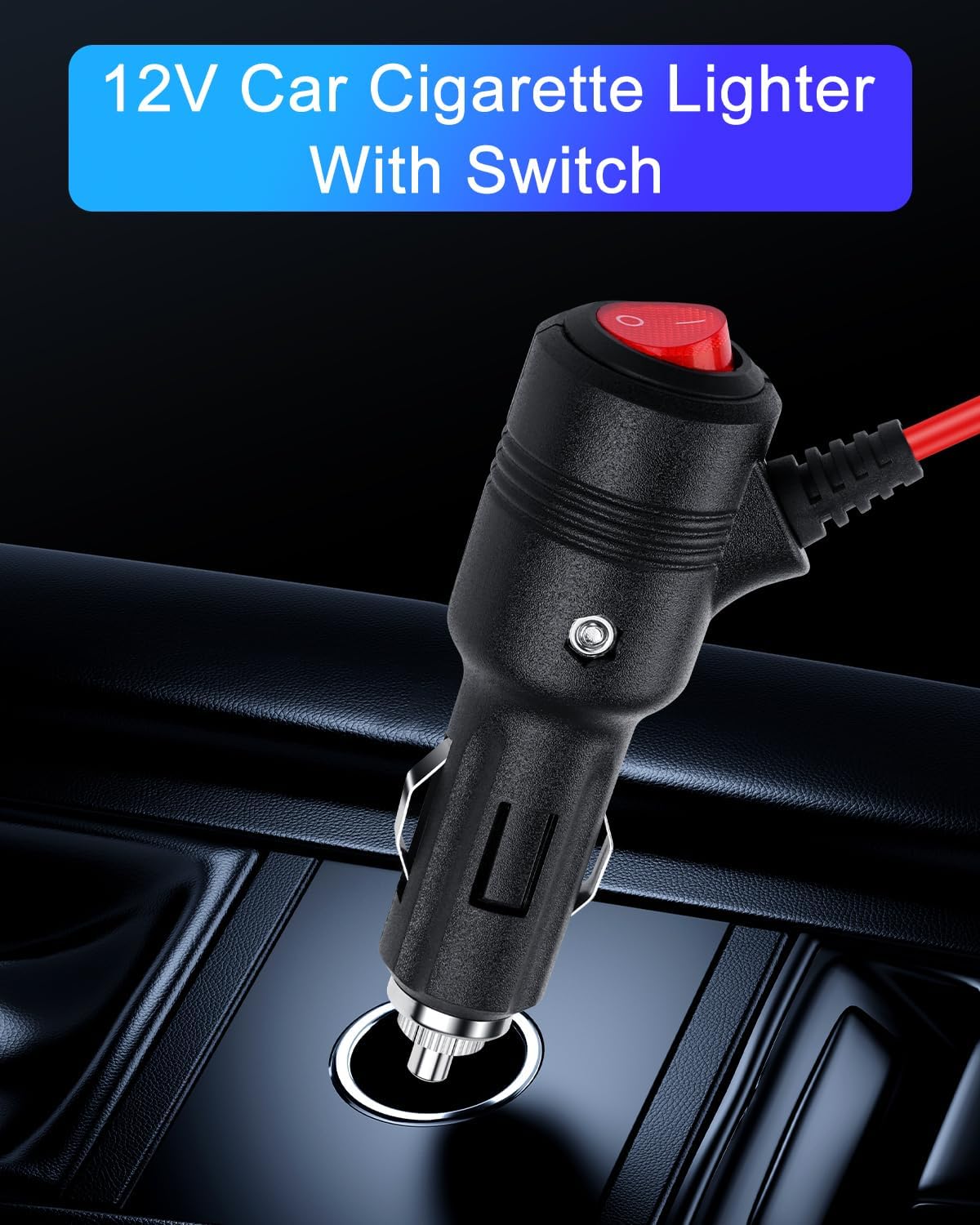

【12 Volt Car Cigarette Lighter Replacement Plug with ON OFF LED Switch】switch with RED LED indicator enables quick connection/disconnection, reducing socket wear from frequent plugging. Light confirms active power supply.
【12v cigarette lighter replacement socket】 for 16AWG/1.5mm² under the cable, input voltage: 12V or 24V, output voltage: 12V or 24V, output current: ≤15A, shell: high temperature resistant PA66 material
【Universal Vehicle Compatibility】 Fits standard 12V car sockets. Perfect for air pumps, tire inflators, dash cams, medical devices, and low-power electronics (≤180W).
